Workshop 3 Ton 5 Ton 10 Ton Single Girder Overhead Hoist Crane Price

Product Description

Product Description
                                                                             Single Girder Overhead Crane
Traditional single girder crane is designed on the basis of LD model. It is characterized by more reasonable structure and higher strength steel as whole, Used together with CD1 model, MD1 model Electric Hoist as a completer set.

Features:
1. Single welding box girder
2. DIN/FEM standard deflection
3. Whole length CNC cutting for complete web plate, high deflection accuracy
4. High quality automatic welding and NDT inspection
5. Shot-blasting Sa2.5 for complete girder after welding, stress release
6. High tension bolts mounting between girder and legs, life time safety connection
7. Compacted gear Motor driving, stepless control, harden gear, safety disc brake IP55
8. High protection class IP55, F class, 40% ED
9. Excellent driving properties, stepless control, smoothly moving
10. All Hoist and crane movements are independent and can be run simultaneously.

Usage:
This crane is usually used indoors, such as workshop, plant, stockyard, etc. to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.


Technical data:


                                                                            LD Single Girder Bridge Crane
Capacity(t)1r2r3t5t10t16r20r
Span(m)7.5m~25.5m
Lifting Height(m)6m,9m,12m
Lifting Speed(m/min)8(8/0.8)8(8/0.8)8(8/0.8)8(8/0.8)7(7/0.7)3.5(0.35/3.5)3.3(0.33/3.3)
Trolley Speed(m/min)20202020202020
Bridge Speed(m/min)30303030303030
Working DutyA5A5A5A5A5A5A5
Power supply380V,50Hz


Detailed Images
Ld Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane Price

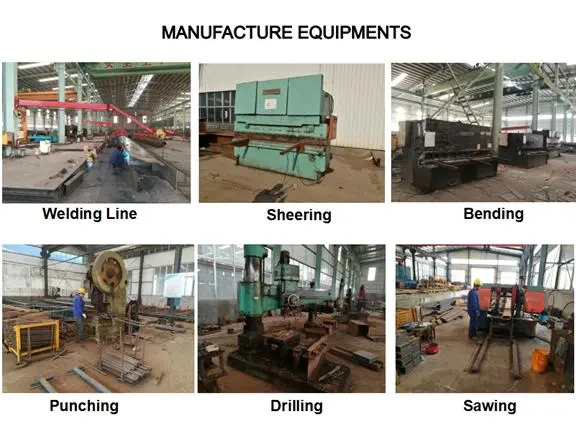

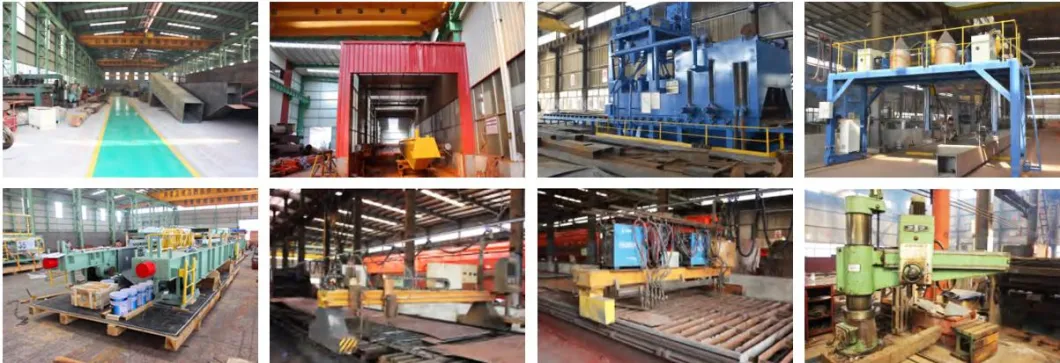

Production Process
Ld Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane PriceLd Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane Price

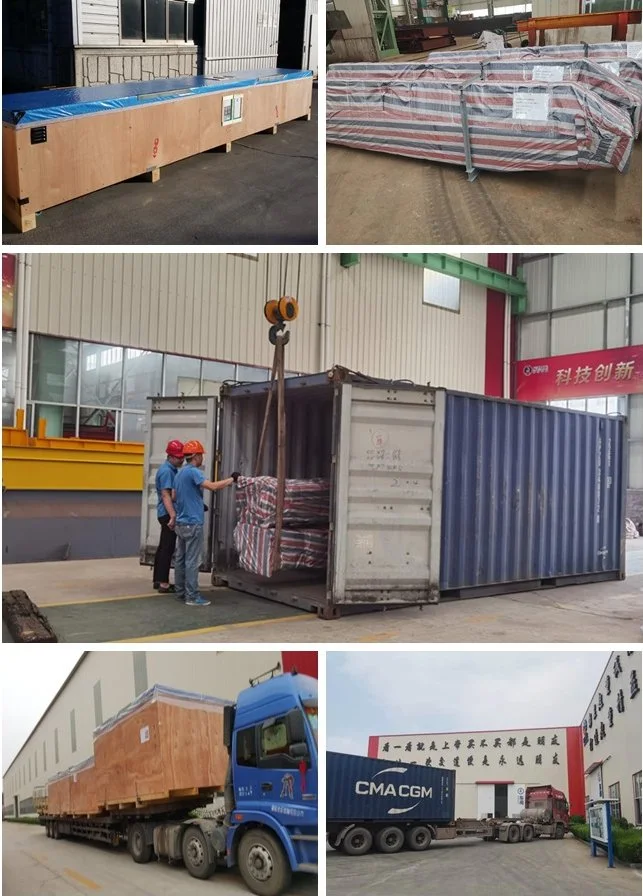

Packing&Delivery
Ld Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane Price
Certifications
Ld Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane Price
Our Services
Ld Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane PriceLd Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane Price
Foreign Clients  From All Over The World
3ton 5ton 10ton 16ton 20ton Factory Use Single Girder Bridge Overhead Crane

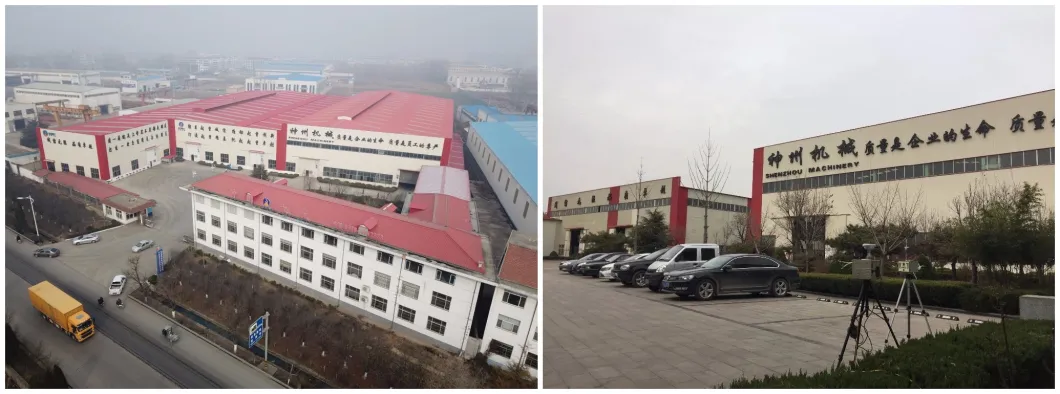

Our Company
Ld Type 5ton Lifting Machine Electric Motor Wire Rope Remote Control Bridge Cane Price
3ton 5ton 10ton 16ton 20ton Factory Use Single Girder Bridge Overhead Crane
FAQ

Q: Are you factory?

A: Yes, we are factory with 31 years old.

Q: How long is your warranty?

Our warranty is 24 months after received the goods.

3. The usage period.

About 30 years under common use.

4. How can we install the crane?

Our senior engineer can be your side to do the installation guide service and training.
